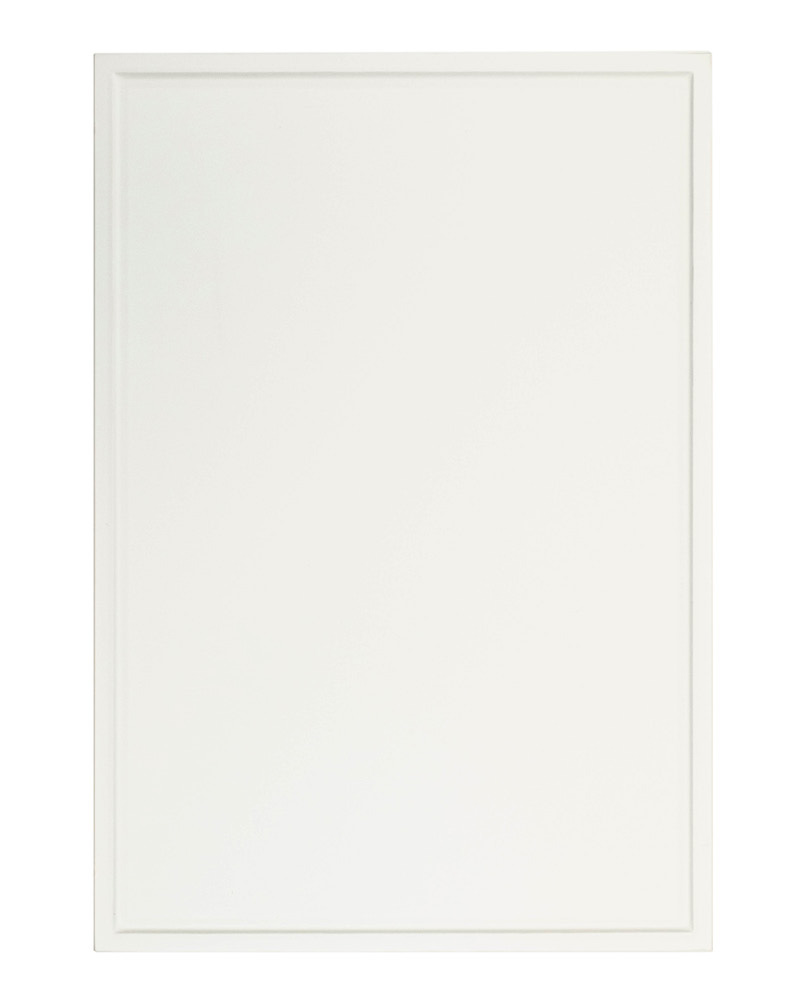

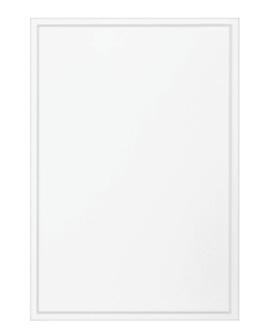

FineLine Door Front

Measurements are communicated in Width x Height in inches, rounded to the nearest 1/16” (.0625). Use the Conversion Table for assistance converting inches to decimals.

Width must be greater than 3” and less than 48”.
Height must be greater than 3” and less than 96”. Warranted to 31" x 48"

• Width *

  Min: 3Max: 48

• Height *

  Min: 3Max: 96

• Square Feet *

• Price - Minimum *

• Price Calculated *

• Weight (kg) *

Our Fronts are pre-drilled for hinges to save you time. The first step in determining the correct hinge bore pattern is to determine what type of cabinet you have. Face frame cabinets have a frame attached to the front of the cabinet box. This frame is made up of stiles and rails, usually wider than ¾”, commonly around 1 ½”. The hinges are attached to this frame. Frameless cabinets, also known as full-access cabinets, do not have a face frame. In these cabinets, the hinges are attached directly to the cabinet box, which is usually ¾” or 5/8” thick.

• Cabinet Type *



  Face frame



  Frameless or Ikea

• Hinge Bore Pattern *



  2.5 Pattern (HB7)
  Face Frame PatternHB7 - Pattern 7



  3 Pattern (HB1)
  Face Frame PatternHB1 - Pattern 1



  3.625 Pattern (HB5)
  Face Frame PatternHB5 - Pattern 5

  Select a hinge pattern based on the distance from the top and bottom edge of the door. The 3” pattern (HB1) is most common. Note: Doors less than 12” tall will include 2 hinge bores. Located 2” from top and bottom edge.

• Hinge Bore Pattern *



  3.625 Pattern (HB3)
  Frameless PatternHB3 - Pattern 3

• Face Frame Soft Close Hinges *

  Don't forget to add hinges. All doors will need a minimum of 2 hinges. Door heights between 36" up to 60" require 3 hinges and doors that are over 60" require 4 hinges. Choose from 1/2” overlay or 1-1/4” overlay. This will match the overlay formula you used when measuring your doors. Most DIYers select 1/2” overlay, click here to view tutorials.

• Face Frame Hinge Options *



  Face Frame Soft Close Hinge – 1-1/4″ Overlay + $2.75 Original price was: $2.75.$0.00Current price is: $0.00.



  Face Frame Soft Close Hinge – 1/2″ Overlay + $2.75 Original price was: $2.75.$0.00Current price is: $0.00.

• Frameless Soft Close Hinges *

  Don't forget to add hinges. All doors will need a minimum of 2 hinges. Door heights between 36" up to 60" require 3 hinges and doors that are over 60" require 4 hinges. Choose your hinges based on the thickness of your cabinet box. If your cabinet box is 5/8” thick, you’ll need the 3mm plate set. For a ¾” box, you’ll go with the 0mm plate set.

• Frameless Hinge Options *



  Frameless Soft Close Hinge with 0mm plate for 3/4″ box + $6.00



  Frameless Soft Close Hinge with 3mm plate for 5/8″ box + $6.00

Label each cabinet as you measure (e.g. Upper 1, Lower 1) and include here. This note will be printed on your product label and you can use it to organize your order for faster installation.

• Label Note *

  Max: 50 characters
